Modular Modern Container Assembling House
Design and Manufacturing
Hall
Outside Staircase
Outdoor Staircase
Meeting Room
Inside Show

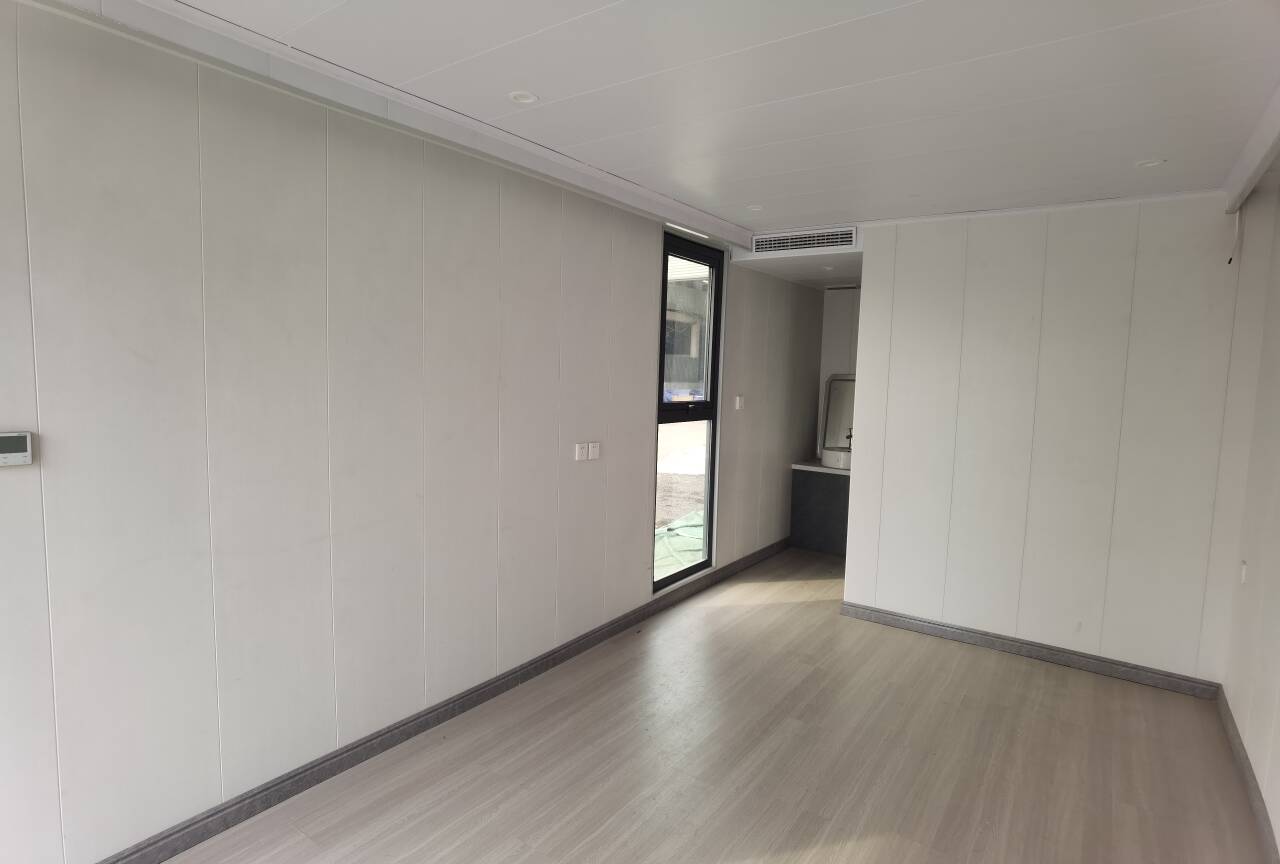

Living Space
Toilet

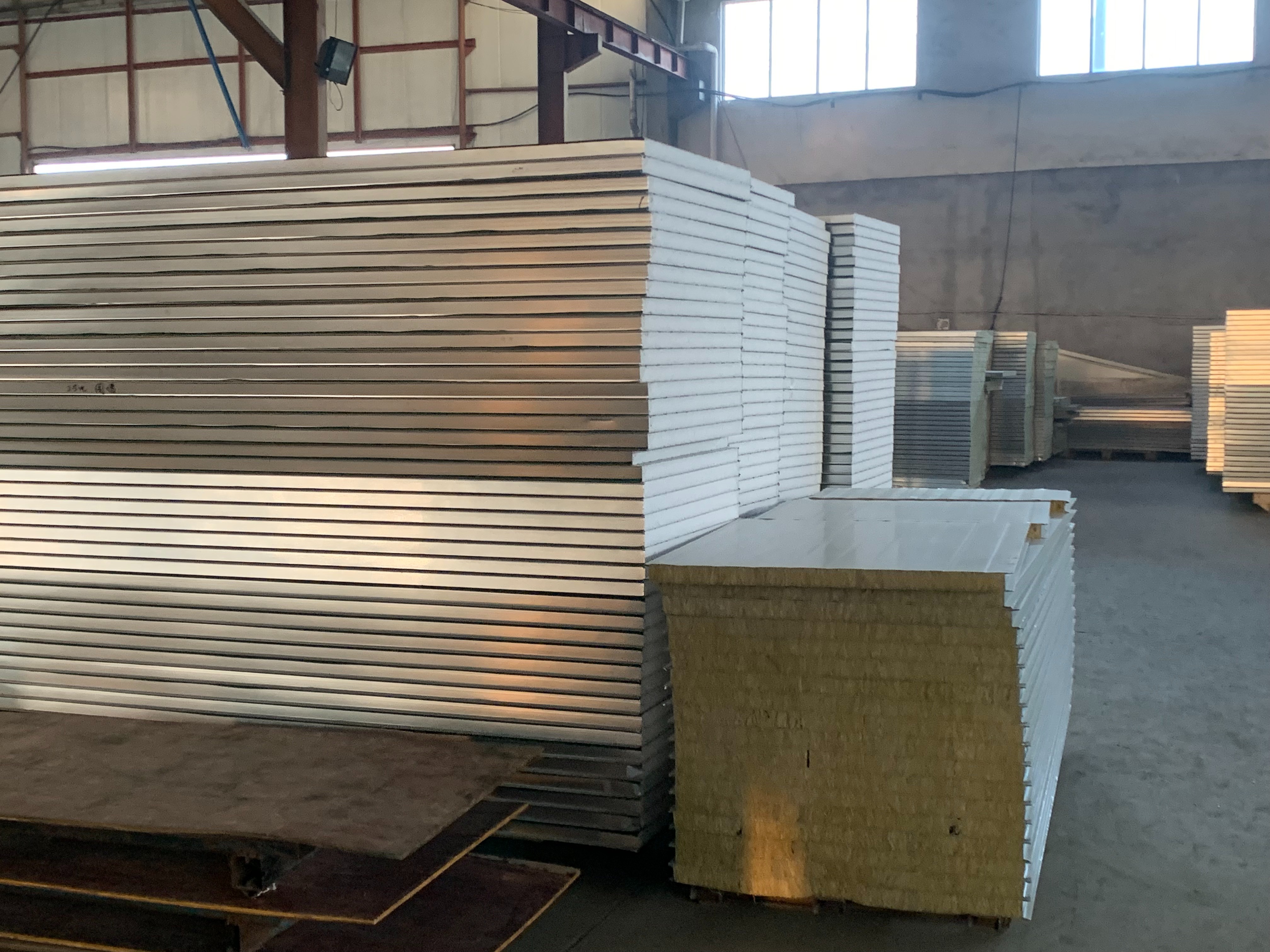

Galvanized wall panel made of iron sheet, rock wool, and iron sheet
The standard thickness of rock wool for wall panels is 50mm. If the customer's usage environment requires good insulation and warmth in the house, the 50mm thick rock wool can also be upgraded to 75mm and 100mm. The thickness of the iron sheet can also be upgraded according to temperature requirements, upgrading to 0.3mm, 0.4mm, and 0.5mm. The standard thickness of rock wool for wall panels is 50mm. If the customer's usage environment requires good insulation and warmth in the house, the 50mm thick rock wool can also be upgraded to 75mm and 100mm. The thickness of the iron sheet can also be upgraded according to temperature requirements, upgrading to 0.3mm, 0.4mm, and 0.5mm.

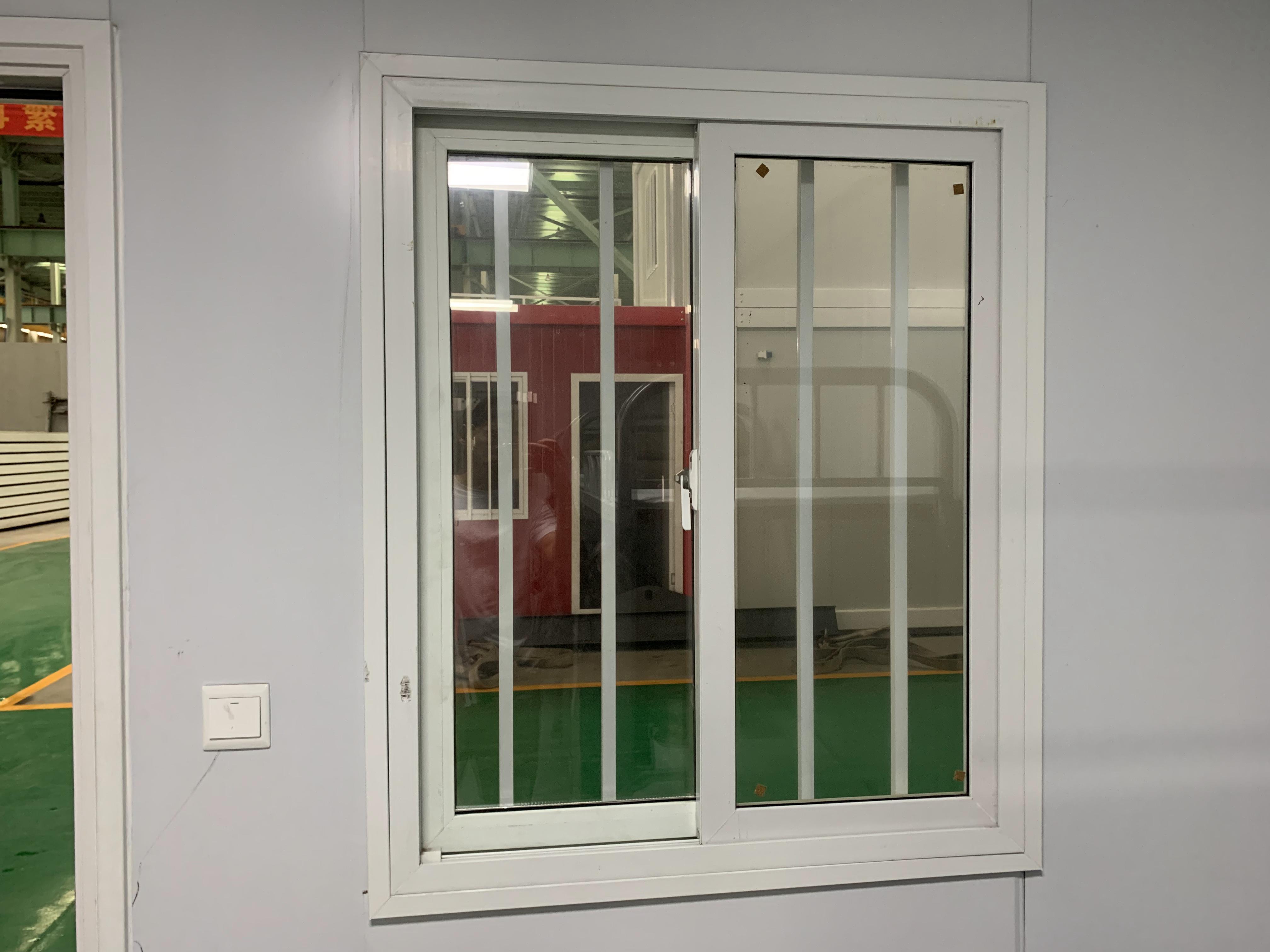

The material of doors and windows is plastic steel.
The entire house is equipped with one door and two windows. The material of the doors and windows is plastic steel. The position of doors and windows can be installed according to the customer's actual situation after receiving the goods. The positions of doors and windows can be replaced. If a house requires many doors and windows, we can also configure the quantity according to the customer's needs. Our windows are equipped with anti-theft railings. If the customer does not require anti-theft railings, we can also omit them from the configuration. When customers need higher quality doors and windows, we can also provide them with aluminum alloy doors and windows; There are also doors and windows made of broken bridge aluminum material. This not only improves the quality of doors and windows, but also provides better insulation and warmth when insulation is needed inside the house. Aluminum alloy and bridge cut aluminum doors and windows will have a better insulation and warmth effect.
The floor inside the house is made of cement sanding board.
The bottom structure of the house is equipped with 9 square tubes. If the customer is concerned about the load-bearing capacity of the house floor, we can also upgrade the 9 square tubes to 14 to increase the load-bearing effect of the house bottom.
Size of Modular Modern Container Assembling House
|
Biogreen Assembling House 5.95*3*2.8m |
|||||
|
sports event |
norm |
unit |
branch number |
Length (m) |
Note |
|
wallboard |
50 Series Rockwool sandwich Panels |
lump |
15 |
2.56 |
Hot-dip galvanised double-sided colour coil 0.25mm compression rib 50kg rockwool |
|
lump |
2 |
1.36 |
|||
|
lump |
1 |
0.48 |
|||
|
Assembled container house main material |
lower beam |
ct |
2 |
5.63 |
Welded short tubes (to support the floor) Hot-dip galvanised cold rolled steel sections 2.15mm |
|
ct |
2 |
2.68 |
Hot-dip galvanised cold rolled sections 2.15mm |
||
|
first beam |
ct |
2 |
5.63 |
Hot-dip galvanised cold rolled sections 2.15mm |
|
|
ct |
2 |
2.68 |
Hot-dip galvanised cold rolled sections 2.15mm |
||
|
corner post |
ct |
4 |
2.48 |
Hot-dip galvanised cold rolled steel section 23mm |
|
|
press board slot |
ct |
2 |
5.7 |
Upper beam to wall plate connectors |
|
|
ct |
2 |
2.8 |
1.2mm |
||
|
horns |
pcs |
8 |
|
8 corners per set 3.5mm |
|
|
Galvanised square tube |
Bottom Purlin |
ct |
4 |
2.99 |
80*80 galvanised steel square tube 1.1mm |
|
ct |
5 |
2.99 |
40*80 galvanised steel square tube 1.1mm |
||
|
topside purlin |
ct |
2 |
2.8 |
50*50 galvanised steel square tube 1.45mm |
|
|
ct |
3 |
1.88 |
40*80 galvanised steel square tube 1.1mm |
||
|
ct |
6 |
1.88 |
40*60 galvanised steel square tube 1.2mm |
||
|
Baking Powder |
|
set |
1 |
|
Upper and lower ring beams; corner posts, corner heads (phosphated + baked plastic powder) |
|
door |
|
pcs |
1 |
925*2030 |
Special set of security doors for assembled boxes |
|
window |
|
pcs |
2 |
925*1200 |
Plastic steel single-glazed double opening and double-pushing windows |
|
roof tiles |
|
pcs |
6 |
2.97 |
Top tile 0.38mm |
|
ceiling tile |
|
pcs |
6 |
2.77 |
Ceiling tile 0.21mm |
|
fireproof floor |
|
pcs |
5 |
2.8*1147 |
1.8mm Thick Cement Frosted Board Sheet |
|
extruded profile |
|
set |
1 |
|
colour steel |
|
metal |
|
set |
1 |
|
Screws, Glass Glue, Pressure Strip, etc. |
|
glass wool |
|
set |
1 |
|
0.6 packs |
|
sundry |
|
set |
1 |
|
Welders and painters plus materials, pipe clips, up and down forces, and |
Let's talk about your assembling house!
Description of Modular House
According to your usage scenario requirements Biogreen will customize:
Size
Color
Layout
Can be moved as a whole
or
Detachable then movable
Compared to traditional construction buildings, the construction cost is lower.
Lower transportation costs
No need crane, 1-2 workers can complete build it within a few days
The whole can be assembled by single containers to diverse shapes to adapt to your application environment.
It can be uesd for Temporary accommodation/Construction office/Commercial display/Sales spaces/Educational facilities/Dining venues/Hotels and homestays/Resort and outdoor accommodation/Timely medical treatment/Clothing industry and breeding facilities

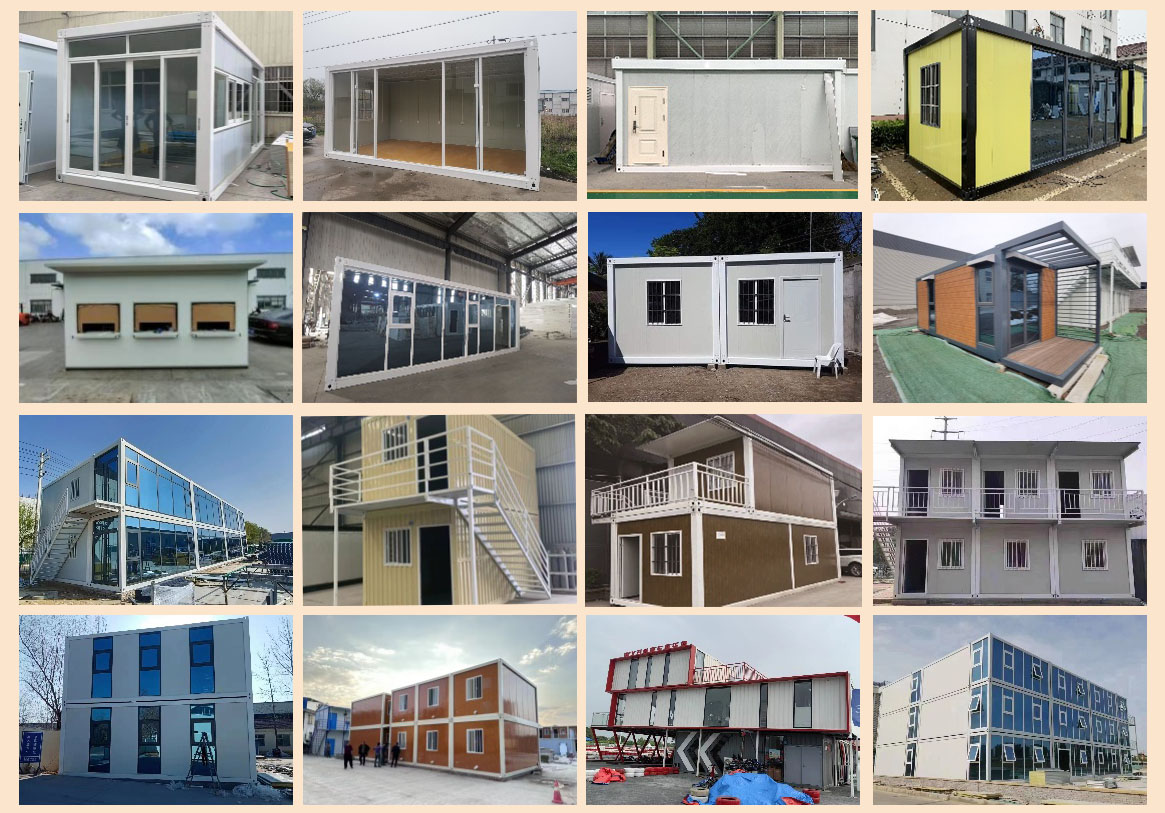

Multiple Style Show
