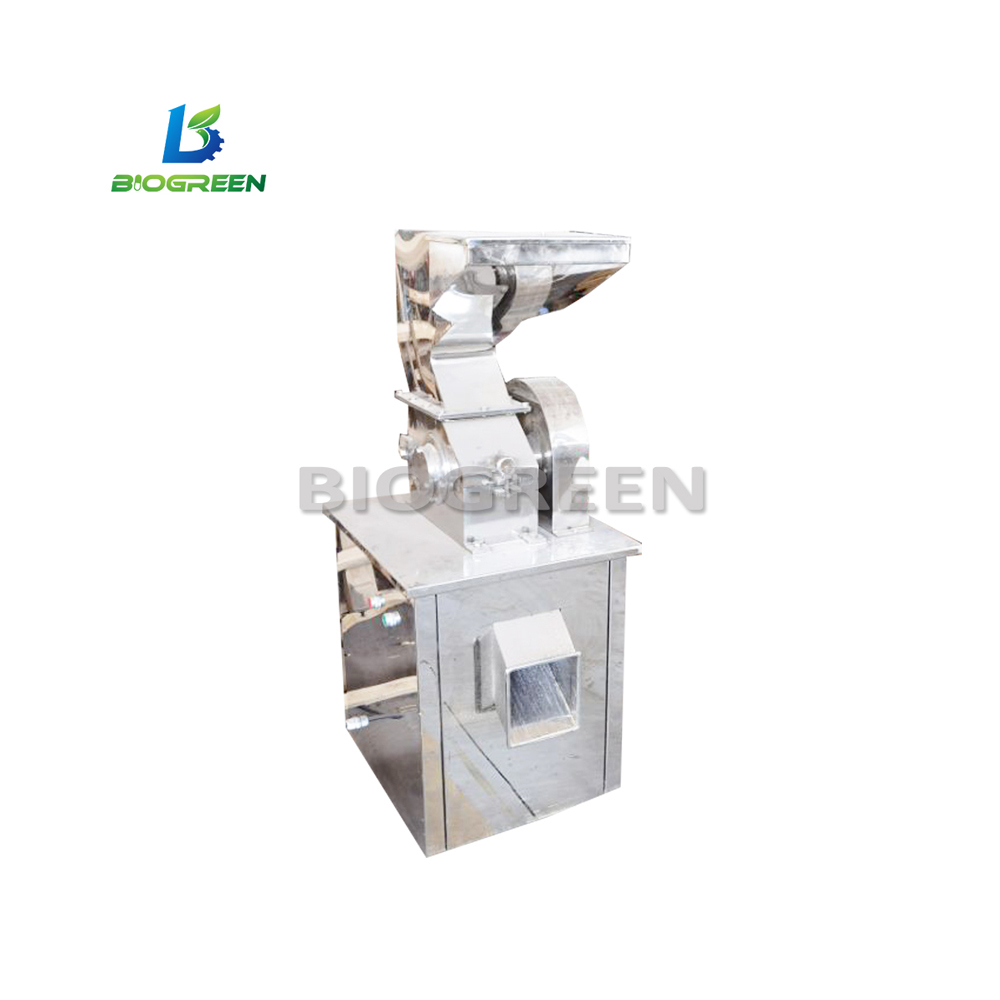

Coarse Crusher
Coarse crushercan process hard and difficult materials, including plastics, copper wire, Chinese herbal medicine and rubber. It can also be used as supporting equipment for the previous process of micro crusher and ultra-fine crusher.
The equipment adopts horizontal structure. The main shaft is equipped with moving tool holder, which is equipped with moving tools. The quantity can be customized according to the size of the equipment. The material is strongly sheared in the crushing chamber by the moving knife and the fixed knife. The crushing size of the material can be adjusted by changing the screen with different aperture.
Application
Coarse crusher is suitable for pharmaceutical, chemical, metallurgical, food, construction and other industries.
| Product parameters | |||||
| Model | 80 | 120 | 200 | 400 | 600 |
| Power(kw) | 1.5 | 3 | 5.5 | 7.5 | 15 |
| Dimension(L*W*H) | 510*450*980 | 650*700*1200 | 720*850*1350 | 1200*1000*1450 | 1300*1100*1650 |
| Weight(kg) | 150 | 250 | 420 | 480 | 160 |
| Capacity(kg/h) | 10-200 | 100-500 | 150-800 | 200-1000 | 500-1500 |
| Size of input granules(mm) | ≤ 50 | ≤ 100 | ≤ 100 | ≤ 100 | ≤ 100 |
| Fineness of products(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Speed of principal axis(r/min) | 400 | 400 | 400 | 380 | 380 |
Feature
- The size of the whole machine can be customized.
- The cutting tools used for crushing are mainly alloy steel, which are sharp and have good crushing effect.
- The size of material crushing can be determined by changing the screen.
- The cutting angle of moving tool can be customized.
- Adopt the combination of multi knife crushing, fixed knife and moving knife.
- The equipment is equipped with counterweight wheel to ensure smooth operation and small vibration.
