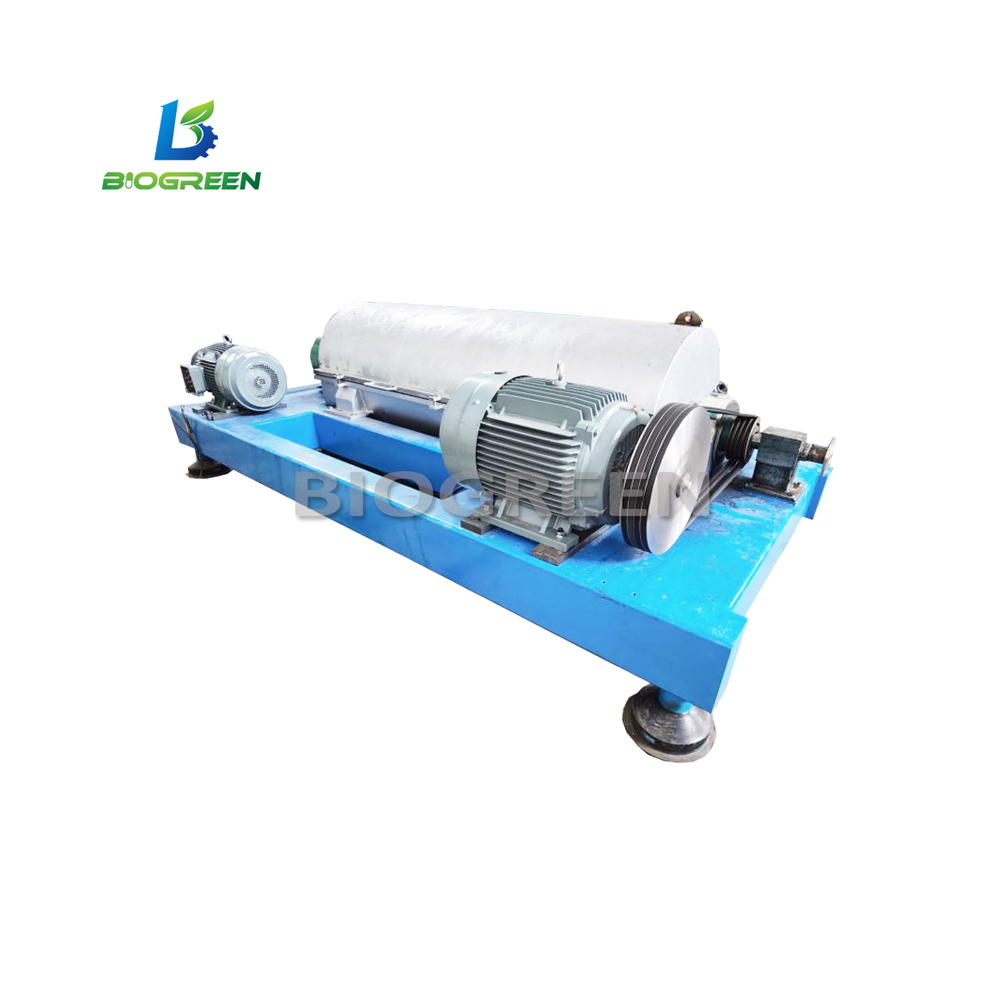

Decanter Centrifuge
Decanter centrifugeuses the centrifugal force generated by the high-speed rotating drum to intercept the solid particles in the suspension in the drum and automatically discharge them out of the machine under the action of the force. At the same time, under the action of centrifugal force, the liquid in the suspension is thrown out through the filter medium and the small hole of the drum, so as to achieve the purpose of liquid-solid separation and filtration.
Classification of decanter centrifuge
According to different materials, it is mainly divided into decanter centrifuges for maximum concentration of solids, decanter centrifuges for separation of mixed liquid, which are mainly used for separation of soybean, peanut and other plant and animal protein, purification of fruit juice and separation of fiber, separation of plant extract, separation of fish meal, separation of distiller's grains, as well as treatment of industrial wastewater and treatment of catering waste.
| Model | Drum diameter(mm) | Drum length(mm) | Rotating speed(rpm) | Separation factor | Capacity | Motor power(kw) | Weight(kg) | Dimension(L*W*H)(mm) |
| LW220 * 930 | 220 | 930 | 5000 | 2835 | 0.5-5 | 7.5 | 1200 | 2420*700*1010 |
| LW300 * 1200 | 300 | 1200 | 4000 | 2550 | 1-5 | 7.5-11 | 1500 | 2680*830*1280 |
| LW355 * 1600 | 355 | 1600 | 3800 | 2868 | 1-20 | 15-18.5 | 1850 | 3490*860*1200 |
|
LWS400 * 1200 Three-phase |
400 | 1200 | 3650 | 3000 | 1-5 | 15-18.5 | 2500 | 2990*960*1205 |
| LW400 * 1800 | 400 | 1800 | 3650 | 3000 | 2-25 | 15-22 | 2500 | 3890*1020*1205 |
|
LWS400 * 1800 Three-phase |
400 |
1800 | 3650 | 3000 | 2-10 | 15-22 | 2500 | 3890*1020*1025 |
| LW450 * 2000 | 450 | 2000 | 3450 | 3000 | 3-35 | 22-37 | 3000 | 4297*1080*1385 |
|
LWS450 * 2000 Three-phase |
450 | 2000 | 3450 | 3000 | 3-35 | 22-37 | 3000 | 4330*1140*1470 |
| LW500 * 2000 | 500 | 2000 | 3000 | 2500 | 5-45 | 30-37 | 3800 | 4330*1140*1470 |
|
LWS500 * 2000 Three-phase |
500 | 2000 | 3000 | 2500 | 5-45 | 30-37 | 3800 | 4330*1140*1470 |
Feature
- The machine has advanced design technology, stable performance, simple structure, convenient maintenance and small footprint.
- It has the advantages of automatic continuous work, large processing capacity and high utilization rate of raw materials.
- Convenient maintenance and low energy consumption
- Customized decanter centrifuges with different performance according to material characteristics
- The screw driving force and speed of the equipment can be customized.
- The materials can be customized to meet the corrosion resistance of different material.
- The angle of spiral roller can be customized.
